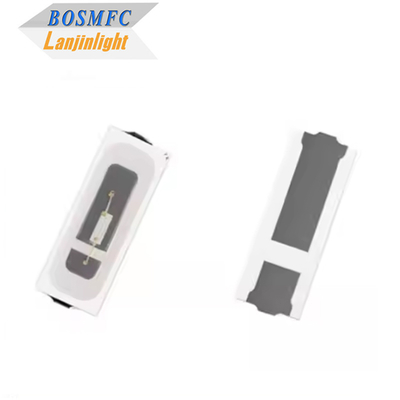

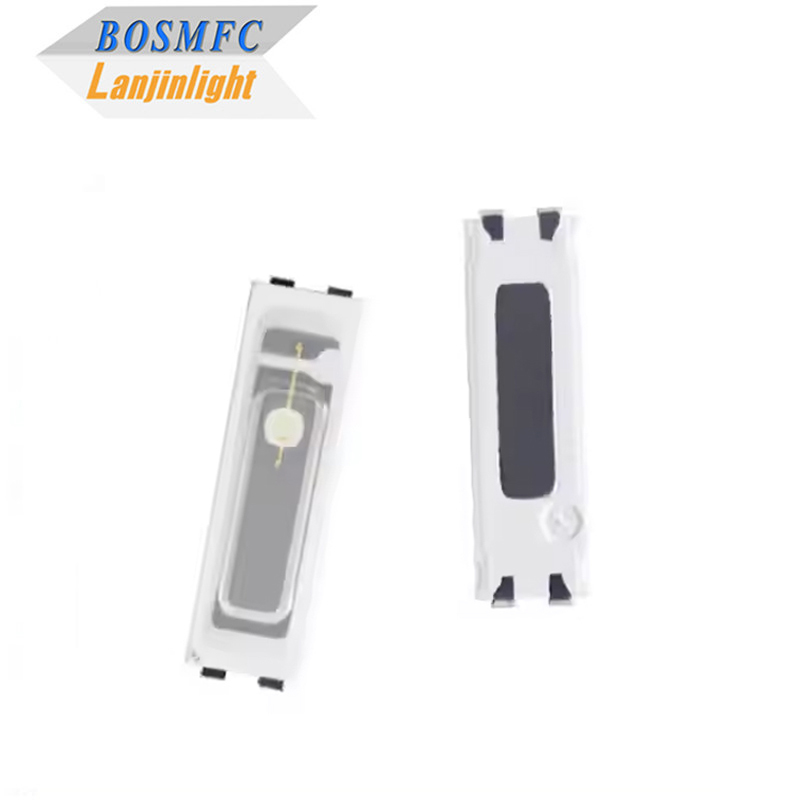

7020 SMD LED Chip Green Color 520-525nm 7.0x2.0x0.8mm Size LED lighting diode for TV Backlight
جزئیات محصول:
| Place of Origin: | China |
| نام تجاری: | BOSMFC |
| گواهی: | Rohs, Reach |
| Model Number: | 7020 SMD LED |
پرداخت:
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
اطلاعات تکمیلی |
|||
| Application: | TV Backlight | Color: | Green |
|---|---|---|---|
| Wavelength: | 520-535nm | Forward Current: | 5mA |
| Forward Voltage: | 2.8~3.4v | Size: | 7.0*2.0*0.8mm |
| Warranty: | 2 Years | Chip brand: | San'an chip / Epistar chip |
| Package: | 1000pcs/reel | Lifetime: | 50,000h |
| Operating Temperature: | -40℃~85℃ | Storage Temperature: | -40℃~100℃ |
توضیحات محصول
7020 SMD LED Chip Green Color 520-525nm 7.0x2.0x0.8mm Size LED lighting diode for TV Backlight
Features:
- Pure gold wires bonding
- Long life span 50,000 hours
- Pb free and radiationless
- Low-temp & lead free reflow soldering
- Efficient heat dissipation
- Energy-saving and environmentally friendly
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Green | 520 | --- | 535 | nm | IF=20mA |
| Luminous intensity | Iv | Green | 600 | --- | 1200 | mcd | IF=20mA |
| Forward voltage | VF | Green | 2.8 | --- | 3.4 | V | IF=20mA |
| Viewing angle | --- | 120 | --- | deg | IF=20mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=20mA |
| Operation Temperature | －40~+85℃ | Size | 7.0*2.0*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
- Commercial lighting
- LED backlight and SMD type indicators
- LED modules and LED strip lights
- Decoration lighting and backlighting in dashboards and switches
- Automotive lighting, such as taillights, brake lights, turn lights, and daytime running lights
- License plate lamps and in-vehicle lighting
- Mobile phones, digital cameras, and flash photoelectric displays
- LED grow lights for indoor gardening
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .free samples will be available.We can
also make samples according to your requirements.
Q2: What’s the delivery time?
A: It usually takes about 5-7 days to produce an order. But the exact delivery time might be different for different orders or at
different time.
Q3:What's your warranty terms?
A: The warranty for all our Led products is 2 years.
Q4: How does your factory do regarding quality control?
A: Quality is priority.We always believe Quality is our marketing and attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for
shipment.
