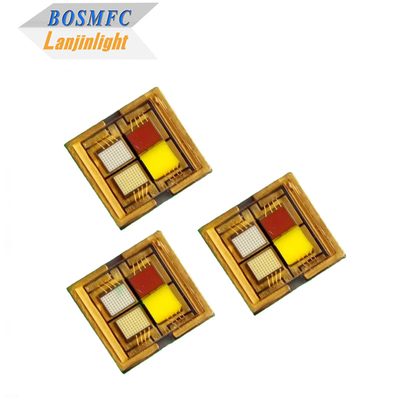

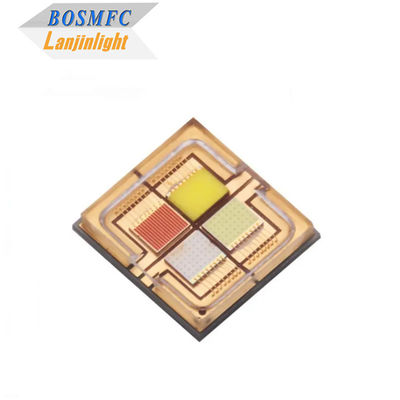

High Power Full Color RGBW 6065 4-in-1 colorful Ceramic SMD LED Chip Bead Diode for Stage Light
جزئیات محصول:
| Place of Origin: | China |
| نام تجاری: | BOSMFC |
| گواهی: | Rohs, Reach |
| Model Number: | 6065 RGBW LED |
پرداخت:
| Minimum Order Quantity: | 10,000pcs |
|---|---|
| Packaging Details: | 1000pcs/reel, Reel+Anti-static bag+carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 500KK/month |
|
اطلاعات تکمیلی |
|||
| Application: | Stage Light | Color: | RGBW Light |
|---|---|---|---|
| Wavelength: | 620-635 / 515-525 / 460-473 Nm/CCT6000-8500K | Luminous Intensity: | 180/ 90/ 50 /260 LM |
| Forward Current: | 350mA | Forward Voltage:: | 1.8-2.4/2.8-3.4 /2.8-3.4v/2.8-3.4v |
| Size: | 5.8*6.3*1.3mm | Warranty: | 2 Years |
| Chip brand: | San'an chip / Epistar chip | Package: | 1000pcs/reel |
| Lifetime: | 50,000h | Operating Temperature: | -40℃~85℃ |
| Storage Temperature: | -40℃~100℃ | ||
توضیحات محصول
High Power Full Color RGBW 6065 4-in-1 colorful Ceramic SMD LED Chip Bead Diode for Stage Light
Features:
- Well-known chip brands material
- 99.99% pure gold wire bonding
- High flux per LED
- Low-temp & lead-free reflow soldering
- More energy-efficient than incandescent and most halogen lamps
- Low Voltage DC operated
- Long lifespan 50,000 hours
Technical Parameters:
Electrical optical characteristics :(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Wavelength | λd | Red
Green Blue White |
620
515 460 CCT6000K |
--- | 635
525 470 CCT8500K |
nm | IF=350mA |
| Luminous intensity | Iv | Red
Green Blue White |
50
70 25 110 |
LM | IF=350mA | ||
| Forward voltage | VF | Red
Green Blue White |
1.8
2.8 2.8 2.8 |
--- | 2.4
3.4 3.4 3.4 |
V | IF=350mA |
| Viewing angle | --- | 120 | --- | deg | IF=350mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=350mA |
| Operation Temperature | －40~+85℃ | Size | 5.8*6.3*1.3mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
- Stage light
- Spot light
- Shot light
- Foutain light
- Landscape light
Materials:
Company information:
|
Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life! |
Packing and Shipping:
Inner packaging: Anti-static Bag Vacuo Packaging
Outer packaging: Standard export carton packing.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .free samples will be available.We can
also make samples according to your requirements.
Q2: What’s the delivery time?
A: It usually takes about 5-7 days to produce an order. But the exact delivery time might be different for different orders or at
different time.
Q3:What's your warranty terms?
A: The warranty for all our Led products is 2 years.
Q4: How does your factory do regarding quality control?
A: Quality is priority.We always believe Quality is our marketing and attach great importance to quality control from the very
beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for
shipment.
